Behind the scenes in the BSB OB truck: the key roles and responsibilities

The 2017 British Superbike season is heading into its final stages, with the remaining three rounds forming part of the ‘Showdown’.

Silverstone was the last stop on the championship prior to the Showdown, and it was there where this writer was invited into the British Superbikes outside broadcast (OB) truck. Richard Coventry, who has been the television director for the MCE British Superbikes series for the past twelve years, is our guide to the Televideo truck. In the second and final piece, we talk about the various roles involved in live motor sport broadcasting.

As referenced in the first piece, Coventry sits on the front desk, with the monitor wall in front of him. But Coventry’s role as television director is significantly more encompassing than that. Coventry in his role speaks to all the key players around him within the British Superbikes production crew, from the producers through to the commentators, commonly known as ‘talkback’ where information travels back and forth between the various parties.

“I sit in the middle of talkback communication between myself, the Eurosport producer, the camera operators, the VT operators, the sound crew, the engineers, the presenter, the commentators, but also race control, so I can speak to the race director if I need to,” Coventry explains.

The end-to-end process between an incident happening on-track, through to the television viewer hearing the story is fascinating. Because of the communication lines that Coventry has, it means that he can gather information on a riders’ condition from the medical centre, and then relay the facts to the commentators. “I talk to everybody effectively and disseminate the information coming back.”

Sitting next to Coventry is a race producer and a vision mixer. Communication across the front desk is vital. The primary role of the race producer is to keep an eye on emerging battles, deciding with Coventry whether to switch to the battle. Following the decision, the vision mixer cuts the pictures to cover said action. The race producer sits to the left of Coventry, with multiple timing screens in front of him on the monitor wall.

“Myself and the race producer will decide whether the battle for the lead has spread out, we’ll look down for a battle for fifth or a battle for 19th. We must make a judgement call on what the best thing to follow is, it’s not always the same outcome. We’ll prioritise what battle we think is more important for the race, for the championship and we will take a view on that.”

British Superbikes - running order
The Eurosport running order for the British Superbikes qualifying programme from Silverstone on Saturday 9th September 2017.

Behind the trio on the front desk is the Eurosport programme producer and the production assistant (PA). Unlike in Formula 1 or MotoGP, the British Superbikes OB truck controls both the race feed and the Eurosport pictures, hence why there is both a race producer and programme producer. The programme producer writes the running order for the Eurosport show, whilst the production assistant at a high-level ensures the show does not fall off the air. “We do have to think on our feet, the running order has some leeway,” explains Coventry, “but everything is timed down to a second.”

“The PA tells us whether we’re over, under or on-time based on the running order and the event, whether we need to adapt the running order to keep us on-time. If there is a red flag, we might have to consider moving breaks, and it is the PA’s duty to communicate that back to Eurosport. And, to work out, further down the running order later in the day, the things that we need to change to make sure that we’re on time.”

Like with Sky’s Formula 1 programming, many other countries also take Eurosport’s British Superbikes output, and it is the responsibility of the PA to communicate any changes to the other channels. “The PA communicates with the rest of the World Feed recipients, such as Setanta Africa, Sky New Zealand, the people who are taking it live elsewhere to let them know if there’s been any changes to the schedule of the event, so they may want to change what they’re doing as well,” Coventry tells me.

Alongside the key roles, there are other important pieces of the jigsaw. Coventry also referenced the on-air presentation team, the camera operators, an editor, two assistant producers, four replay operators, riggers, amongst many more people behind the scenes. “It does go off successfully, I suppose that’s a relative term! It’s like the proverbial duck on the pond isn’t it, the legs are going ten to the dozen underneath, but the ducks are smooth on the surface!”

“It’s pretty labour intensive, you’ve got to have an operator for most cameras, if we’re live we need a live gallery PA. We couldn’t reduce this beyond where we are without affecting the output. It’s a fairly slick and tight operation. There’s a lot to consider, but fortunately there’s enough of us to think of it all.”

Advertisements

Behind the scenes in the BSB OB truck: the monitor wall

The 2017 British Superbike season is heading into its final stages, with the remaining three rounds forming part of the ‘Showdown’.

Silverstone was the last stop on the championship prior to the Showdown, and it was there where this writer was invited into the British Superbikes outside broadcast (OB) truck. Richard Coventry, who has been the television director for the MCE British Superbikes series for the past twelve years, is our guide to the Televideo truck.

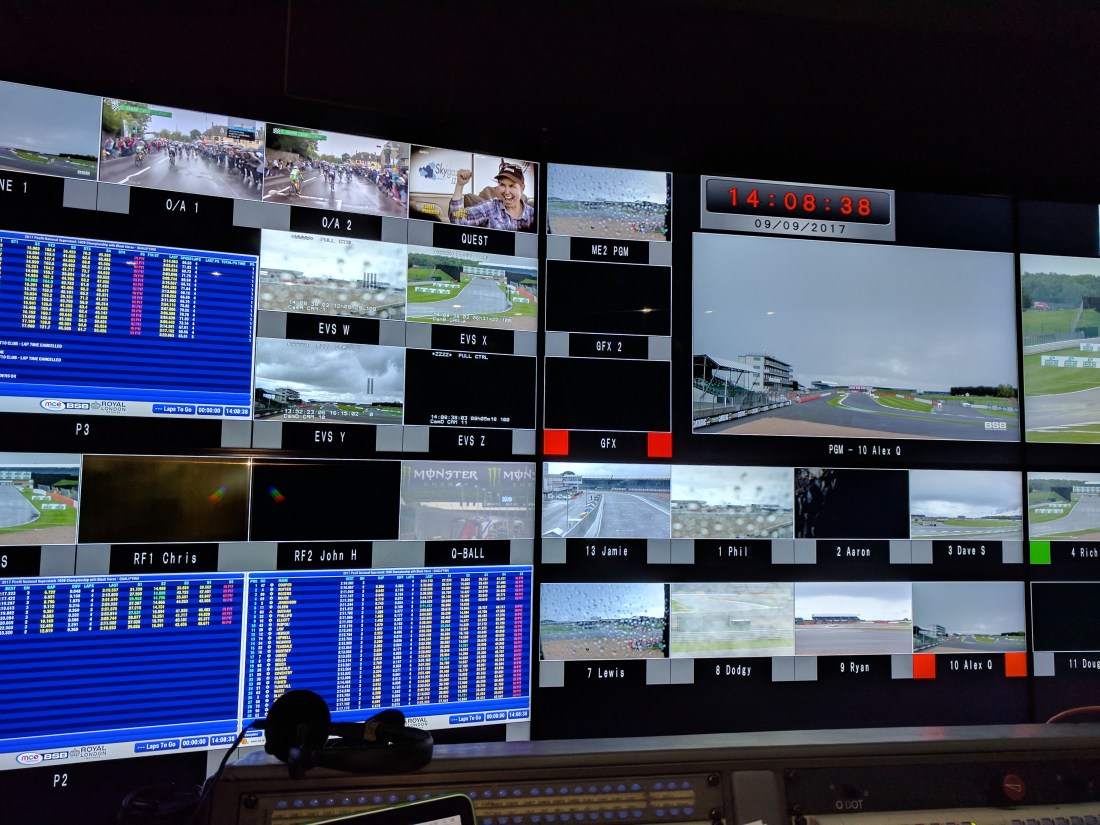

The main component of any OB truck is the wall of video monitors, which is where most of the focus lies. At a very high level, the monitor wall is where the director can see the variety of sources. For Coventry and his team, this can consist of around 13 track cameras and two pit lane cameras.

The size of the operation massively depends on the series, those of you who read my MotoGP piece with Dorna’s Managing Director Manel Arroyo will know that Dorna have around 150 cameras per race! Nevertheless, the principles behind the outside broadcast truck are similar.

“The monitor wall is a multi-viewer, so its eight monitors split with lots of sources. Every source that’s available to me in the vision mixer is on the monitor,” Coventry explains. There is a left bank (with two monitors), the four centre monitors seen above and a right bank (with two further monitors).

The centre bank of monitors is where Coventry’s attention is for much of the time. “I’ve got 13 track cameras directly in my eye line, underneath the main programme output (PGM). Next to that is the vision mixer preview (EDT PVW – PVW) so what is coming next,” Coventry says.

As you may expect, the track cameras are ordered by their position on the circuit. So, track camera one, controlled by Phil, is positioned at Copse (identified on the screenshot above as 1 Phil). Further round the track, Matt is controlling track camera six at Club opposite the Formula 1 pit lane, and so on and so forth.

A special case is track camera eight, identified above as 8 Dodgy. The reason for this is that the camera can double up and act as two different cameras. In this instance, the camera can see the bikes entering and exiting the arena section. This is common place at tracks where there are tight complexes, or the layout is small enough to allow multiple uses of one camera (the camera high up above the start-finish straight at Monte Carlo is another example of this).

The two graphic operators (GFX and GFX 2) sit up in Race Control with the time keepers. The left-hand and right-hand bank of monitors feature repeating sources.

“I’ve got four replay machines, which are called EVS W, X, Y and Z respectively. Each replay machine can record up to six sources,” Coventry explains. Both sides also contain the off-air output for the channels that British Superbikes are broadcasting on (O/A 1, O/A 2, and Quest), the two pit lane cameras (RF1 Chris and RF2 John) and the big screen output around the circuit.

Eurosport use the two pit lane cameras for their pre and post-session presentation, controlled also from the centralised OB truck. “Because of the unique way British Superbikes is run, as well as directing the race production, we also do Eurosport’s presentation. In MotoGP or F1, you would have a BT or Sky Sports truck and then an international World Feed truck, where the UK broadcaster would sit downstream. For the superbikes, unless there is a clash with World Superbikes, we do everything.”

The most interesting part of the side banks is a camera identified as ‘Q-Ball‘. “We control the Q-Ball camera from the truck. The camera this weekend is at Woodcote, coming into the start-finish straight, it’s very close to the track so we wouldn’t place a camera operator there, it gives us a fast speed shot,” Coventry notes. The benefit of doubling some elements up is so that nothing can be missed.

Lastly, specific to the left-hand side are the raw timing screens (P1P2 and P3), and the final satellite output (Line 1). Adrian Bourne, normally sitting to the left of Coventry, will use the timing screens to keep an eye on any emerging battles and on any fallers. One thing readers may notice that is not here is any source on-board cameras. The reason is cost related: the cost of live on-board cameras for motorcycling is significantly more than their four-wheel counterparts. Some On-board footage however is produced for the BSB YouTube channel by Drift Innovation.

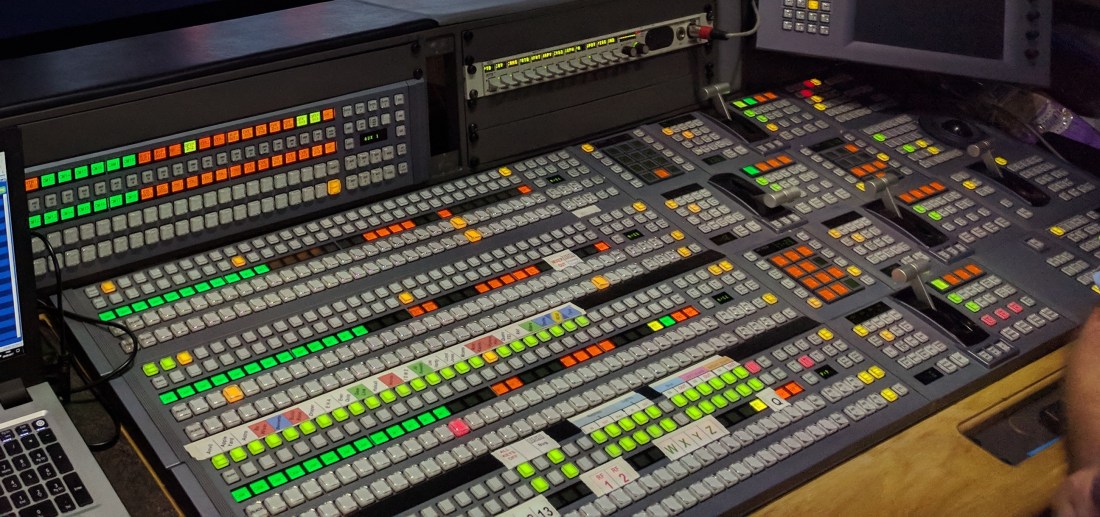

British Superbikes - OB truck - buttons.jpg

Below the wall of video monitors is a series of buttons, known more formally as the vision mixer, responsible for slicing the final live product together. There are four repeating banks, each correlating to the sources in the screenshots above. On each bank, there are buttons for the 13 track cameras, the two pit lane cameras and four replay mixers. “It’s layers of vision mixer, cascading into the layer below, so we can make layered complicated effects if we wanted to,” Coventry explains to me.

Each layer also contains a variety of lime green buttons, generated before the live show. “All the green buttons here are macros, which are things written in advance, they’re complicated moves that you wouldn’t be able to build live so we build them in advance. For example the start lights animation is a macro, the team boxes, changing the name of the team boxes, these are stored in the mixer, as is the BSB bug and the timing graphics as well.”

The detail above covers the technical element, including the variety of outputs and graphics. But every television product has a human touch to it, and British Superbikes is no different. The technical side of television production is only one side of a complex story…

British Superbikes - OB truck - Monitor Wall Left 2.jpg
